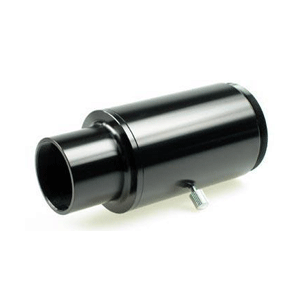

Adaptor for eyepiece projection with DSLR cameras. You can connect the camera with a conventional T-ring and use different 1.25" eyepieces in order to get different magnifications. A 1.25" prime focus adaptor is also included.
Prime focus photography
You can directly connect the camera to 1.25" focusers using a conventional T-ring.
Eyepiece projection
You can mount a compact 1.25" eyepiece inside the adaptor in order to get different magnifications.
Practical tips
For eyepiece projection you can use many different 1.25" eyepieces, as long as they have a reasonably compact body. We recommend TS Super Plossl eyepieces 9, 12 or 15mm.
Specifications:
The adaptor consists of two parts:
Part 1:
Telescope side: 1.25” barrel
Camera side: T2 male thread
Part 2:
Telescope side: T2 female
Camera side: Accepts 1.25" eyepieces. T2 male
